Aesthetic Series

FilamentBay™ PETG Transparent

Transparent PETG for visual prototypes

Illustrative product image; selected Clear. Exact color photo unavailable.

Aesthetic Series · PETG Transparent

FilamentBay™ PETG Transparent

Transparent PETG for visual prototypes

Suggested uses Lamps and diffusers · Vase-mode prints

Feeder: AMS / AMS lite · Review printer limits

$18.99 USD / 1 kg spool · 1.75 mm

Standard order · availability checked below

Stock confirmation required

Color: Clear6 colors

Color and spool size

SKU FB-PETG-TRN-CLE-1K HEX #F2F6F8

No payment is taken here. We confirm availability and send a payment link within one business day.

4+ spools ≈ $16.71 each · 12% off any mix, applied automatically.

Check your setup

AMS / AMS lite. Check printer temperature limits and spool fit before ordering; feeder guidance does not validate your print setup.

Grade sources and evidence limits · Printing settings

Request a sample Farm pricing

US warehouse
Timing confirmed before payment

30-day returns
unopened spools

Payment link
after confirmation

Save, compare & printer preferences

Saved materials & my printer

Set your printer to review material and feeder limits.

Open comparison

Features

Transparent PETG for visual prototypes

A transparent PETG finish for evaluating light transmission and visual appearance. Layer geometry, printing conditions and wall thickness affect clarity; a render is not a measured optical or strength result.

Typical catalog values are not finished-part design allowables. Test method, conditioning, specimen orientation and batch acceptance limits require confirmation. Source and evidence status.

Best for

Properties

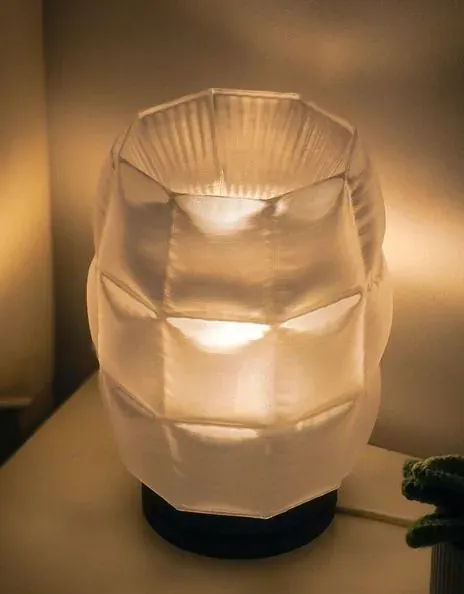

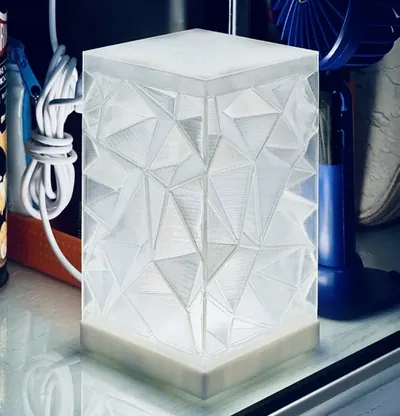

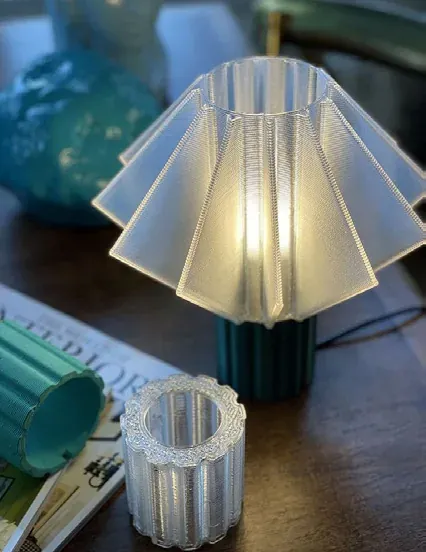

PETG Transparent application illustration 1 — Lamps and diffusers — application illustration, not a validated print sample.

PETG Transparent application illustration 2 — Vase-mode prints — application illustration, not a validated print sample.

Technical specifications

Printing settings & presets

Temperature, drying and printer setup

Nozzle240–260 °C

Bed60–70 °C

Max speedNot verified

Drying suggestion55 °C · 4 h

Extruder adviceCheck printer limits

AMSAMS / AMS lite

Dry before printing if the bag has been open more than a few days: 55 °C · 4 h. See the drying guide.

Download starting presets & worksheets

Starting settings

Generated from available catalog values; validate on your printer. Target versions and calibration steps.

Bambu StudioStarting preset OrcaSlicerStarting preset PrusaSlicerStarting preset

Material properties

Supplier values & measurement limits

Mechanical properties
Tensile strength (MPa)	48 ± 10
Flexural strength (MPa)	70 ± 10
Notched impact (kJ/m²; method unconfirmed)	3 ± 1
Elongation at break (%)	11 ± 5
Shore hardness	80 D

Physical properties
Density (g/cm³)	1.27
Melt flow index (g/10 min)	5.7 ± 3
Shrinkage (%)	0.1–0.5
Heat deflection temperature (°C)	70 ± 5

Spool & filament
Diameter tolerance	± 0.02 mm
Net weight	1 kg (0.25–5 kg available)
Spool outer diameter	200 mm
Spool width	65 mm
Spool hub	54 mm
Empty spool weight	160 g

Ultraline company brochure, PDF page 19. Typical catalog values are not finished-part design allowables. Test method, conditioning, specimen orientation and batch acceptance limits require confirmation. The source does not identify a specimen process, ISO method, HDT load or MFI temperature/load. View this grade's evidence status.

Buy more, pay less per spool

Any 4+ spools of any FilamentBay material take 12% off automatically. From 50 spools a month, the Print Farm program prices per kilogram.

Print Farm pricing

Quantity	Price per spool
1–3	$18.99
4+	≈ $16.71 (discount rounded on subtotal)
50+ / month	Per-kg ladder

Frequently asked questions

How do I get the clearest prints?

Compare wall thickness and continuous versus interrupted extrusion on a small optical sample. Keep material condition constant and change one variable at a time; there is no validated clarity recipe or transmission measurement for this grade.

Does the spool fit a Bambu Lab AMS?

Our 1 kg plastic spool is 200 mm outer diameter and 65 mm wide with a 54 mm hub, inside the width and diameter Bambu Lab lists for the AMS. Check the feeder label for the selected material. Wood and composite grades use the external holder, as does TPU on the full-size AMS. TPU 72D can use AMS lite.

Do I need to dry it before printing?

Popping and stringing can have several causes. Check moisture and print conditions separately. The listed drying values are supplier suggestions, not verified endpoints; confirm the grade, spool and dryer limits before heating. See the drying guide for a controlled workflow.

Downloads

Bambu Studio profile Generated starting values for PETG Transparent; printer validation not published. Starting preset

OrcaSlicer profile Generated starting values for PETG Transparent; printer validation not published. Starting preset

PrusaSlicer profile Generated starting values for PETG Transparent; printer validation not published. Starting preset

Technical data sheet Ask whether grade-specific test conditions and a batch report are available. Request TDS

Material comparison All grades with price, settings, supplier properties and explicit evidence gaps. Open guide

All profiles Formats, validation status, target versions and calibration steps. Profiles page

FilamentBay™ PETG Transparent

Check your setup

Transparent PETG for visual prototypes

Printing settings & presets

Material properties

Buy more, pay less per spool

Frequently asked questions

Downloads
