Save 14% Not AMS
Flexible Series · TPU 98A
FilamentBay™ TPU 98A
Firm flexible for footwear and structural parts
$24.99 $29.99 USD · 1 kg spool
4+ spools $21.99 each — 12% off any mix, applied automatically. Color: Black10 colors
Diameter
2.85 mm and 3.00 mm on request for wholesale orders.
Not for the AMS. Print from the external spool holder. TPU below 55D is not supported by the AMS feed path.
US warehouse
2–5 business days
2–5 business days
30-day returns
unopened spools
unopened spools
Secure checkout
Shop Pay · PayPal
Shop Pay · PayPal
Slicer profiles
Features
Firm flexible for footwear and structural parts

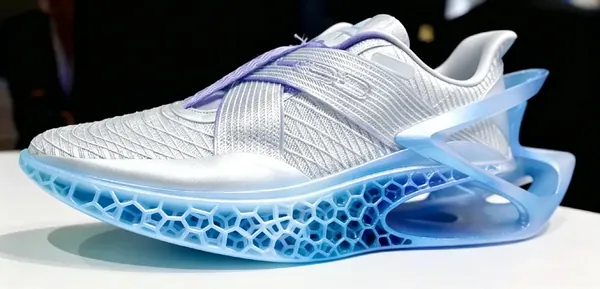

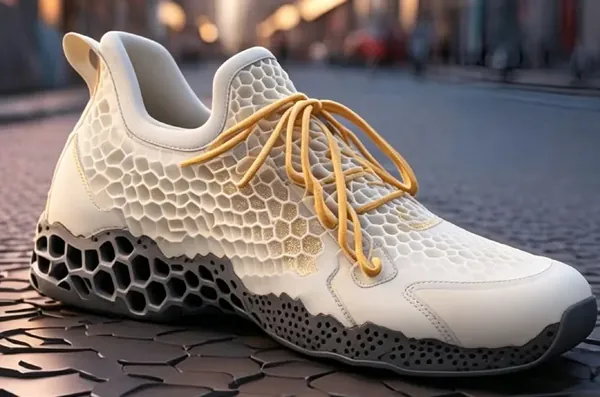

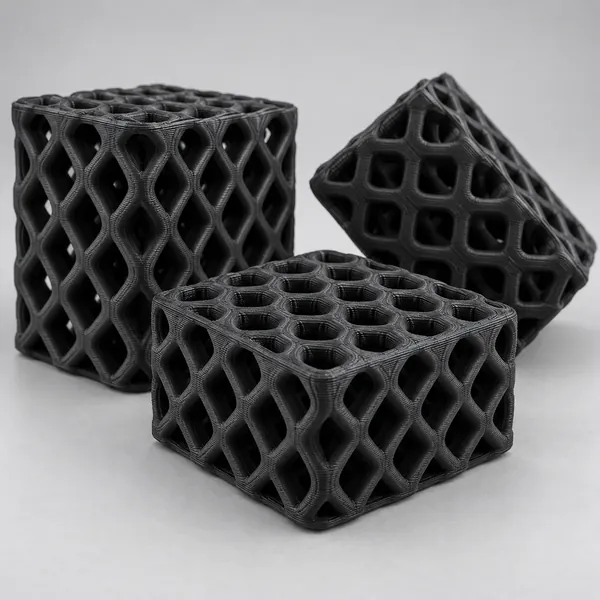

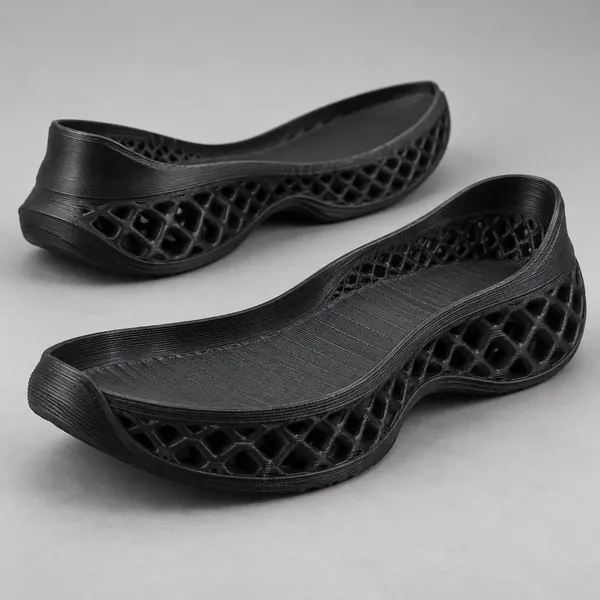

A firmer TPU that still deforms under force and recovers its shape. Prints at higher speeds and holds structure better, which makes it the grade for shoe midsoles and lattice structures.
Best for
Properties
Technical specifications
Everything you need before you hit print
Nozzle220–240 °C
Bed30–60 °C
Max speed≤ 300 mm/s
Drying55 °C · 4 h
ExtruderDirect / Bowden
AMSExternal holder
Dry before printing if the bag has been open more than a few days: 55 °C · 4 h. See the drying guide.
Material properties
| Tensile strength (MPa) | 30 ± 3 |
|---|---|
| Elongation at break (%) | > 800 |
| Shore hardness | 98A |
| Density (g/cm³) | 1.7 |
|---|---|
| Melt flow index (g/10 min) | 32 ± 5 |
| Heat deflection temperature (°C) | 36 ± 2 |
| Diameter tolerance | ± 0.02 mm |
|---|---|
| Net weight | 1 kg (0.25–5 kg available) |
| Spool outer diameter | 200 mm |
| Spool width | 65 mm |
| Spool hub | 54 mm |
| Empty spool weight | 160 g |
Tested by the Ultraline 3D lab on injection-moulded specimens: tensile ISO 527, Charpy ISO 179, HDT ISO 75. Values are typical, not guaranteed minimums.
Buy more, pay less per spool
Any 4+ spools of any FilamentBay material take 12% off automatically. From 50 spools a month, the Print Farm program prices per kilogram.
Print Farm pricing| Quantity | Price per spool |
|---|---|
| 1–3 | $24.99 |
| 4+ | $21.99 |
| 50+ / month | Per-kg ladder |
Frequently asked questions
How fast can I print 98A?
On a direct-drive printer 60–100 mm/s is realistic. It behaves closer to a rigid filament than 95A does.
What does 98A mean?
Shore A hardness. 98A is close to a hard rubber tyre tread: it flexes in thin sections and stays firm in thick ones.
Do I need to dry it before printing?
Every spool ships vacuum-sealed with desiccant. If the bag has been open for more than a few days, or you see popping and stringing, dry at the temperature on the spec grid before printing.
Downloads
Bambu Studio profile Filament preset for TPU 98A, tuned on the lab printers. Download
OrcaSlicer profile Filament preset for TPU 98A, tuned on the lab printers. Download
PrusaSlicer profile Filament preset for TPU 98A, tuned on the lab printers. Download
Technical data sheet Print settings, mechanical and physical properties, test methods. Request TDS
Material comparison Every FilamentBay grade side by side: strength, heat, printability. Open guide
All profiles The full slicer × material matrix on one page. Profiles page
