Engineering Series

FilamentBay™ ABA

The upgraded carbon-fiber ABS

Illustrative product image; selected White. Exact color photo unavailable.

Engineering Series · ABA Basic

FilamentBay™ ABA

The upgraded carbon-fiber ABS

Suggested uses Security camera housings · Mirror caps

Feeder: Check feeder suitability · Review printer limits

$21.99 USD / 1 kg spool · 1.75 mm

Standard order · availability checked below

Stock confirmation required

Color: White2 colors

Color and spool size

SKU FB-ABA-BAS-WHI-1K HEX #F4F4F4

No payment is taken here. We confirm availability and send a payment link within one business day.

4+ spools ≈ $19.35 each · 12% off any mix, applied automatically.

Check your setup

Check feeder suitability. Check printer temperature limits and spool fit before ordering; feeder guidance does not validate your print setup.

Grade sources and evidence limits · Printing settings

Request a sample Farm pricing

US warehouse
Timing confirmed before payment

30-day returns
unopened spools

Payment link
after confirmation

Save, compare & printer preferences

Saved materials & my printer

Set your printer to review material and feeder limits.

Open comparison

Features

The upgraded carbon-fiber ABS

A supplier-designated ABA grade described as a modified ABS composite. Resin identity, filler content and application test conditions require confirmation; the brochure figures do not establish outdoor or automotive qualification.

Typical catalog values are not finished-part design allowables. Test method, conditioning, specimen orientation and batch acceptance limits require confirmation. Source and evidence status.

Best for

Properties

ABA application illustration 1 — Security camera housings — application illustration, not a validated print sample.

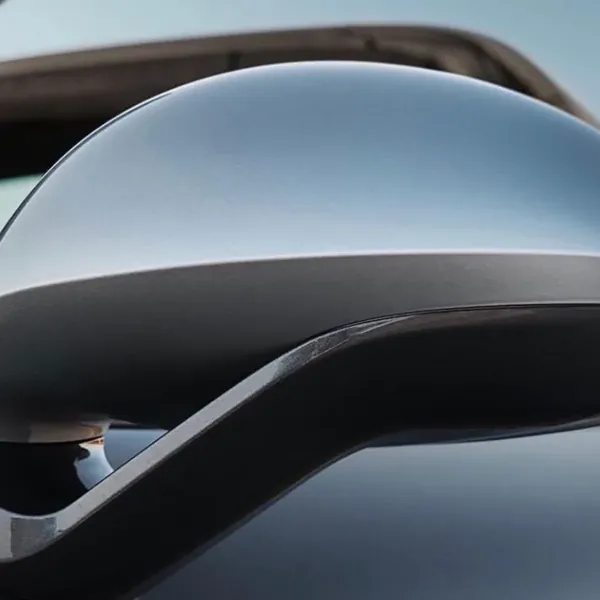

ABA application illustration 2 — Mirror caps — application illustration, not a validated print sample.

Technical specifications

Printing settings & presets

Temperature, drying and printer setup

Nozzle250–270 °C

Bed80–100 °C

Max speedNot verified

Drying suggestion55 °C · 4 h

Extruder adviceCheck printer limits

AMSCheck feeder suitability

Dry before printing if the bag has been open more than a few days: 55 °C · 4 h. See the drying guide.

Download starting presets & worksheets

Starting settings

Generated from available catalog values; validate on your printer. Target versions and calibration steps.

Bambu StudioMapping under review OrcaSlicerMapping under review PrusaSlicerMapping under review

Material properties

Supplier values & measurement limits

Mechanical properties
Tensile strength (MPa)	39 ± 4
Flexural strength (MPa)	68 ± 5
Notched impact (kJ/m²; method unconfirmed)	7 ± 3
Elongation at break (%)	11 ± 3
Shore hardness	81.5 D

Physical properties
Density (g/cm³)	1.02
Melt flow index (g/10 min)	30.5 ± 3
Shrinkage (%)	0.4–0.8
Heat deflection temperature (°C)	101 ± 2
Vicat softening temperature (°C)	105

Spool & filament
Diameter tolerance	± 0.02 mm
Net weight	1 kg (0.25–5 kg available)
Spool outer diameter	200 mm
Spool width	65 mm
Spool hub	54 mm
Empty spool weight	160 g

Ultraline company brochure, PDF page 31. Typical catalog values are not finished-part design allowables. Test method, conditioning, specimen orientation and batch acceptance limits require confirmation. The source does not identify a specimen process, ISO method, HDT load or MFI temperature/load. View this grade's evidence status.

Buy more, pay less per spool

Any 4+ spools of any FilamentBay material take 12% off automatically. From 50 spools a month, the Print Farm program prices per kilogram.

Print Farm pricing

Quantity	Price per spool
1–3	$21.99
4+	≈ $19.35 (discount rounded on subtotal)
50+ / month	Per-kg ladder

Frequently asked questions

Is ABA abrasive?

Mildly. Use a hardened steel nozzle for long production runs; brass is fine for a few spools.

Does the spool fit a Bambu Lab AMS?

Our 1 kg plastic spool is 200 mm outer diameter and 65 mm wide with a 54 mm hub, inside the width and diameter Bambu Lab lists for the AMS. Check the feeder label for the selected material. Wood and composite grades use the external holder, as does TPU on the full-size AMS. TPU 72D can use AMS lite.

Do I need to dry it before printing?

Popping and stringing can have several causes. Check moisture and print conditions separately. The listed drying values are supplier suggestions, not verified endpoints; confirm the grade, spool and dryer limits before heating. See the drying guide for a controlled workflow.

Downloads

Bambu Studio profile Material mapping or this format is not available. See the settings hub before proceeding. Starting preset

OrcaSlicer profile Material mapping or this format is not available. See the settings hub before proceeding. Starting preset

PrusaSlicer profile Material mapping or this format is not available. See the settings hub before proceeding. Starting preset

Technical data sheet Ask whether grade-specific test conditions and a batch report are available. Request TDS

Material comparison All grades with price, settings, supplier properties and explicit evidence gaps. Open guide

All profiles Formats, validation status, target versions and calibration steps. Profiles page
